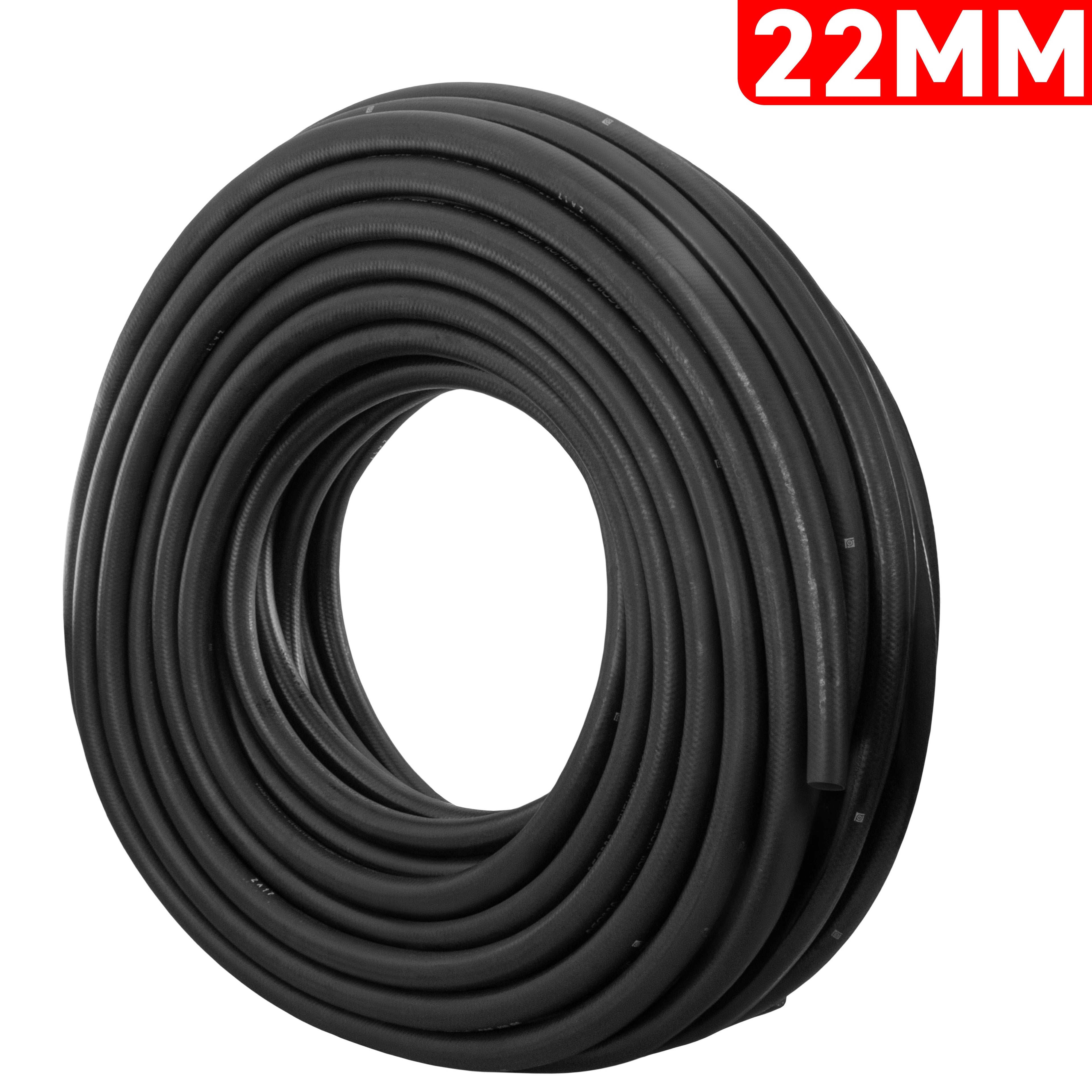

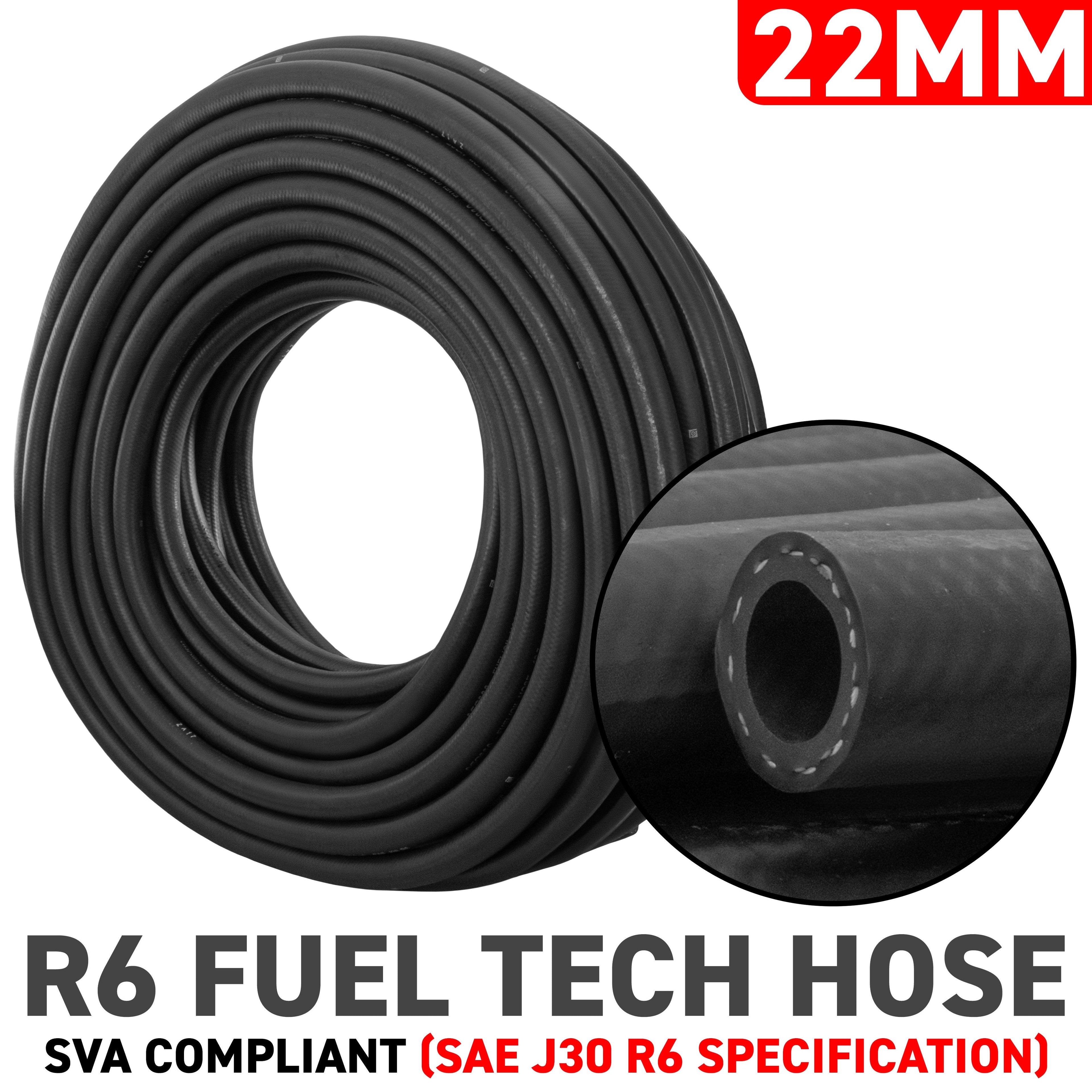

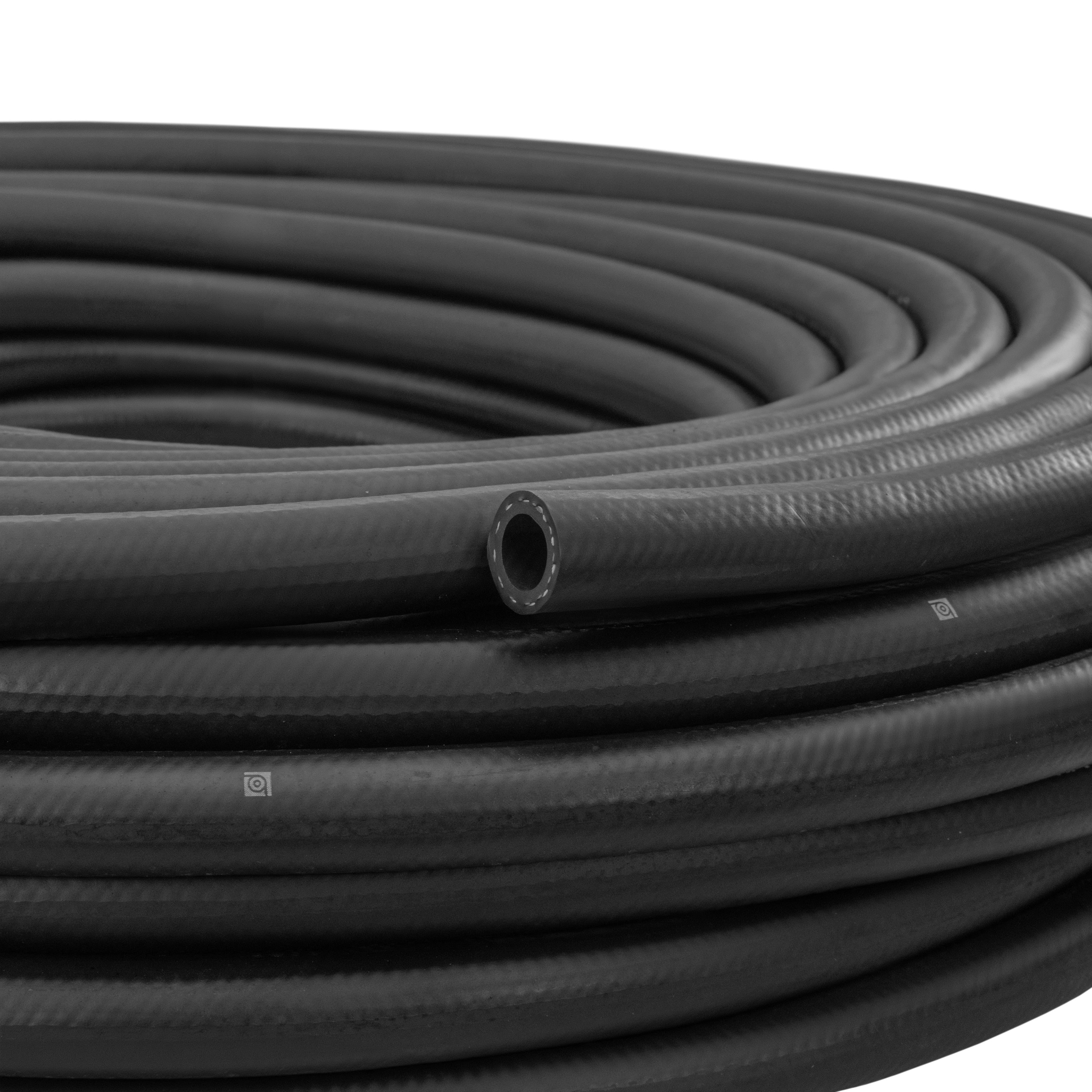

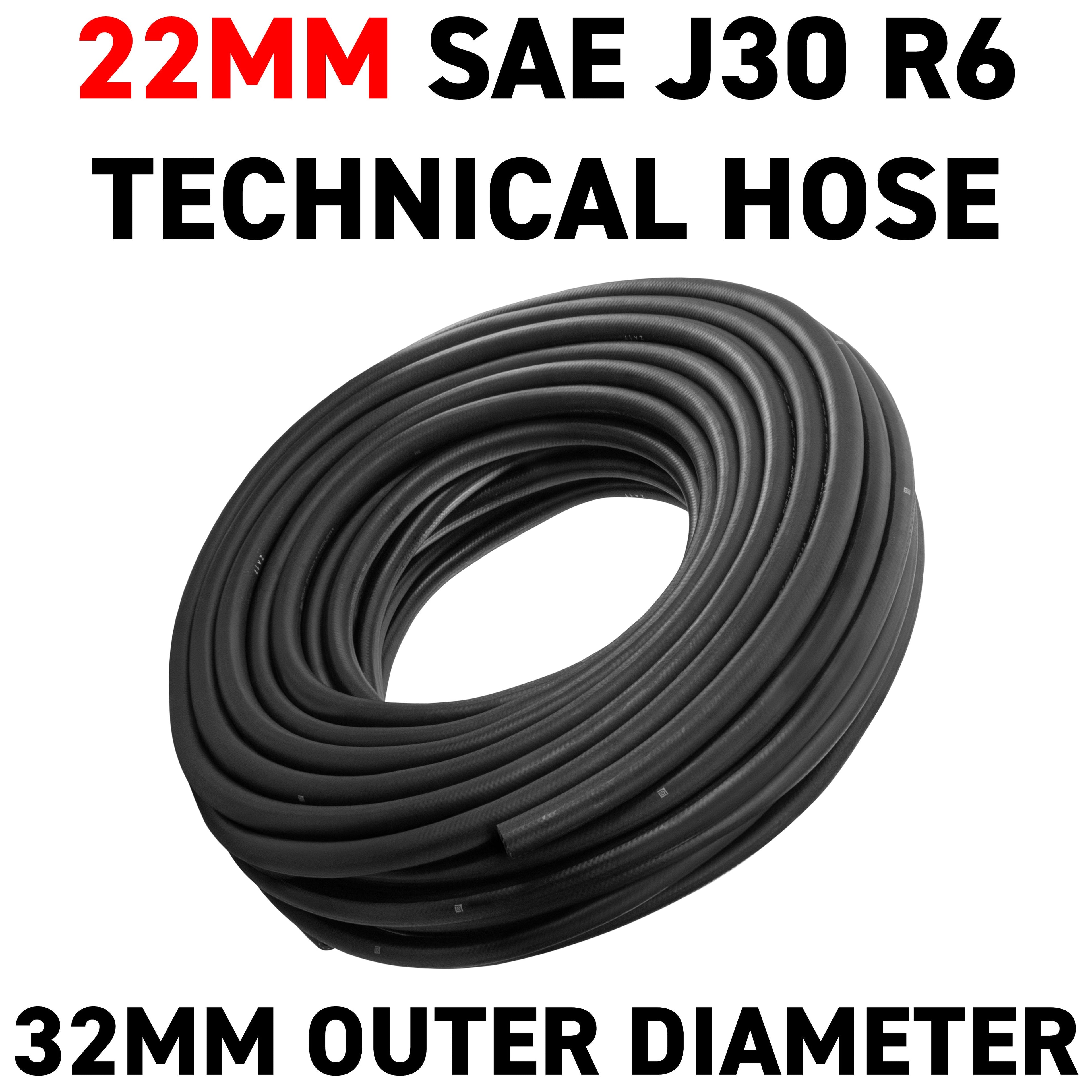

22mm Braided Rubber Fuel Hose, SAE J30 R6

Designed for high-capacity fuel transfer, the 22.0 mm Agoma fuel hose is a heavy-duty solution for demanding industrial and commercial applications. Constructed from superior NBR, its sleek black finish offers excellent protection against fuel permeation and chemical exposure.

Engineered to meet the R6 specification, it is perfect for transferring gasoline, diesel, and E10/E15 blends in automotive, marine, and industrial settings. It reliably handles unleaded fuels, methanol, and lubricants while resisting abrasion and corrosion.

Operating efficiently from –40°C to +100°C and built to SAE J30 R6 and SVA standards with high-strength dual thread braid, it performs reliably even under severe conditions.

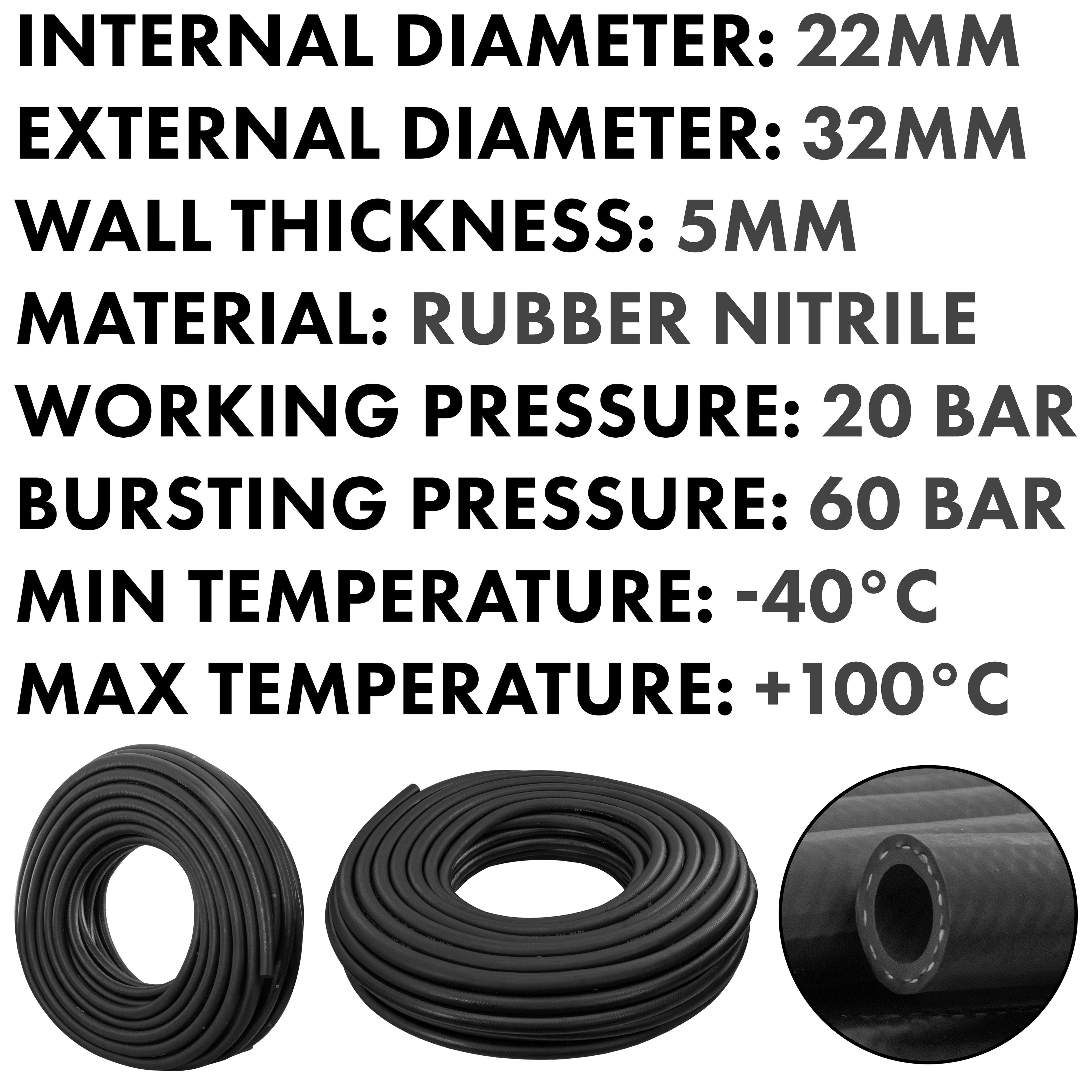

• Internal Diameter: 22.0 mm
• External Diameter: 32.0 mm
• Wall Thickness: 5.0 mm
• Working Pressure: 20 bar
• Bursting Pressure: 60 bar
• Temperature Range: –40°C to +100°C
• Material: Nitrile Butadiene Rubber (NBR)
• Reinforcement: High-strength dual thread braid
• Colour: Black

Uses & Advantages: The 22.0 mm hose excels in applications where high flow volume and robust durability are critical, such as large industrial fuel systems and commercial marine operations.

Its reinforced design ensures maximum efficiency in fuel delivery under the most demanding conditions.
